ANK Kit1 10th Anniversary Edition 300B Amplifier – Official Australian Distributor



As the Authorized ANK Australia Distributor, we proudly offer this exceptional 8.5W 300B single-ended triode amplifier in a 240V Australian version, complete with a full local warranty and dedicated support.



This amplifier is a true pinnacle of sonic refinement, rivaling the world’s finest, regardless of cost. Crafted with meticulous attention to detail, it’s adorned with premium silver RCA connectors, a precision ELMA selector switch, the renowned Khozmo volume potentiometer, pure copper insert plates, and robust stainless steel hardware throughout.

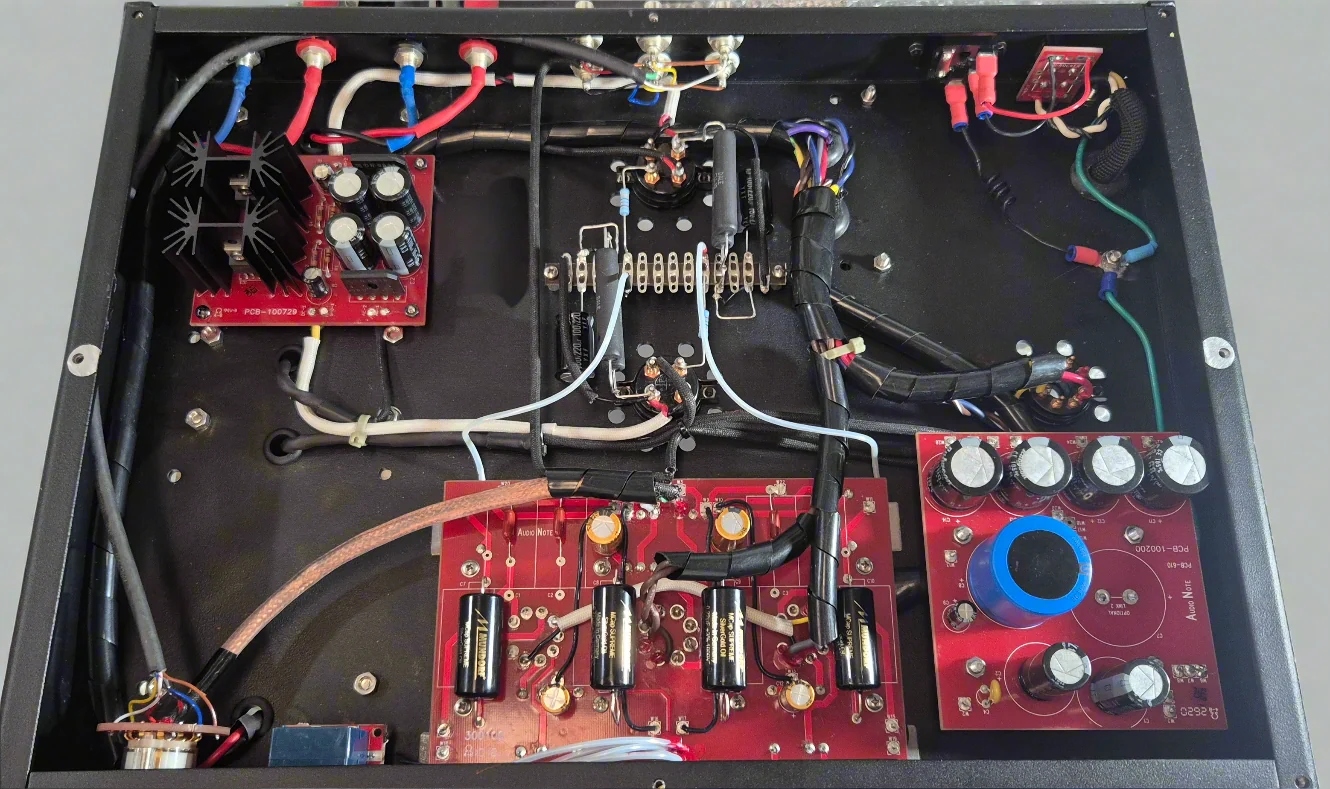

Faithful to the original Audionote circuit design, the Kit1 features a beautifully simple layout with high-grade components across three PCBs, ensuring minimum signal paths and uncompromising quality at every turn.



Triple C-Core Transformers – Transforming the Listening Experience



The Kit1-10th Anniversary edition includes cutting-edge Triple C-Core 300B output transformers, pushing sonic boundaries to new heights. These precision-crafted transformers are engineered for remarkable clarity, delivering enhanced definition and detail with a captivating sense of authority. This amplifier truly brings vocals and instruments to life, delivering an audiophile experience that resonates deeply with pure musical emotion.



Upgrade Options:



1. Standard Kit – Ready for easy DIY assembly.

2. Triple C-Core Output Transformer Upgrade Kit – For those seeking elevated performance.

3. Professionally Built Unit – Fully assembled with a 240V AU mains transformer.

4. High-Performance Edition – Assembled by A.L.A Audio, featuring C-Core output transformers, pure silver internal wiring, Audionote Tantilium resistors, Audionote & Mundorf Supreme Silver Gold capacitors. (Contact us for full details.)

5. Extreme Edition – Tuned by A.L.A Audio with HIB Quad Core output transformers, pure silver wiring, Audio Note resistors and capacitors, premium binding posts, and advanced circuitry tuning. (Contact us for full details.)



Note: Custom-built units have an estimated lead time of 20–45 business days

---

Sound Quality

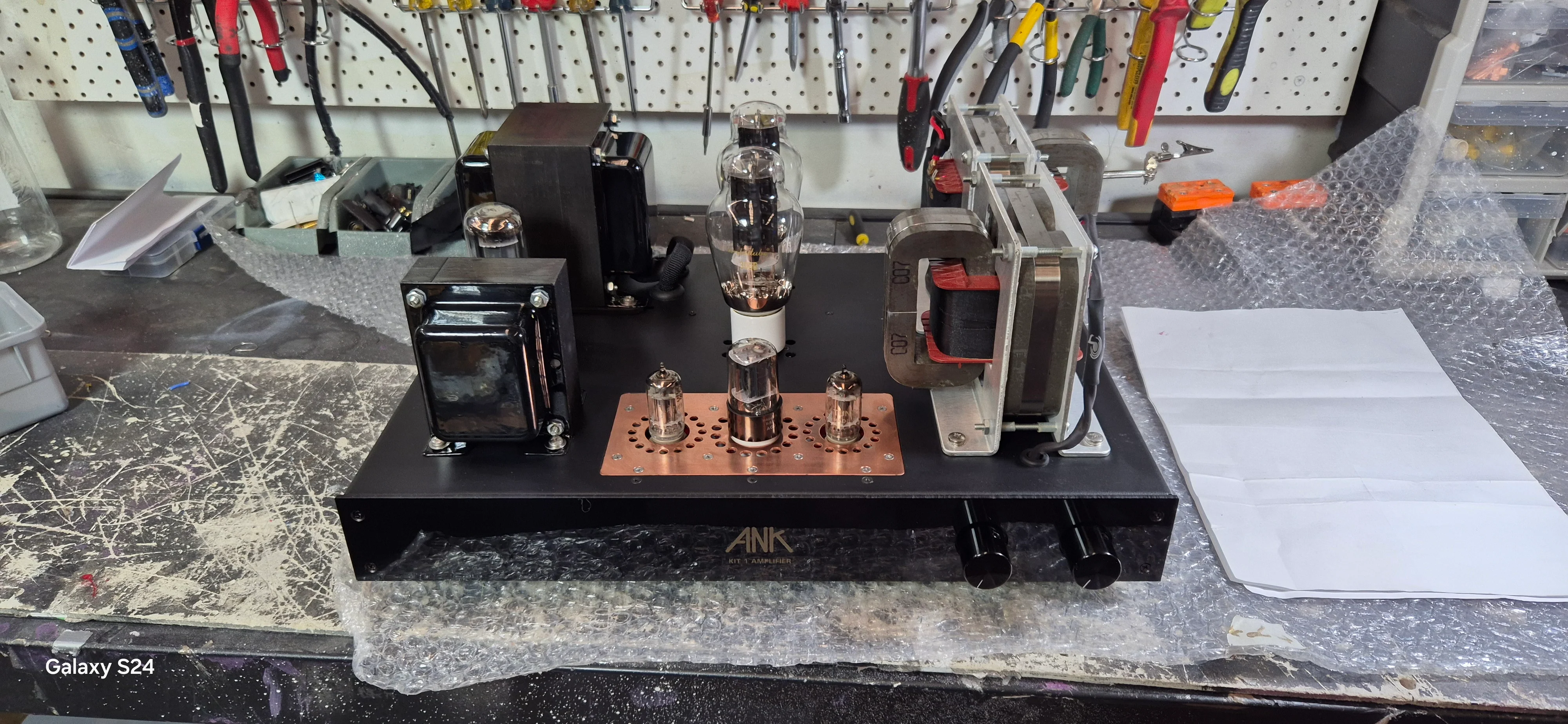

The Kit1 embodies the classic 300B single-ended, zero-feedback design with carefully considered enhancements. A robust mains transformer handles the high current demands of the amp, powering a 5U4G rectifier, two 5687 drivers, a 6SN7, and a pair of 300B tubes.



The 6SN7 operates as a pre-amp driver, adding a captivating depth to the sound, followed by a volume attenuator that maintains a stable input impedance. Next, a pair of 5687 driver tubes, running at unity gain, deliver a rich current supply that drives the audio signal into the 300Bs. The large output transformers complete the design, resulting in an utterly immersive single-ended 300B experience—one that invites you to lose yourself in the music, night after night.



Specifications:



Power Output: 8 Watts, Class A



Output Tubes: 2 x 300B



Driver Stages:



First Stage: 6SN7



Second Stage: 5687





Rectifier Tube: 5U4GB



Front Insert Plate: Solid Copper



Outputs: Stereo Pair (4, 8, 16 ohms), with C-Core taps (0, 8, 15 ohms)



Speaker Compatibility: Recommended for speakers with a minimum of 88dB sensitivity



Dimensions: Width 43cm, Height 5cm, Depth 30cm





Weight: 23kg



Chassis: 3mm Aluminum with Black Powder Coat







---
