In stock now!

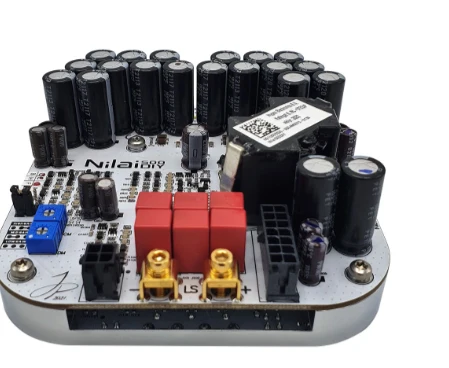

The Hypex Nilai500DIY amplifier module comes with a discrete buffer stage and voltage regulators.

Nilai® Class D technology is here!

We have taken our existing control-loop topology to a whole new level resulting in an immense performance upgrade compared to NCORE®. The overall performance has increased by not less than 10 times!

This massive performance boost results in distortion figure that are 10 times lower, a power supply noise rejection that is 10 times higher and a reduced output impedance that has dropped by a factor 10. These figures may already sound incredible, wait until you hear them come alive through your speakers!

APPLICATIONS

High-end power amplifiers

FEATURES

500W / 4Ohm

THD+N: 0,00015% (-116dB) @ 100W / 4Ohm / 20.000Hz

Output noise: 9,5µV @11,8dB gain

Gain adjust in 3 steps (11,8 - 21,8 and 27,8)

High fidelity components

Discrete buffer stage and regulators

Ded
